Maximum sleeve bearing loads |
| |
Axial(dynamic) |
2.4 N |
| |
Radial(4mm from jamming ring) |
28 N |
|
Press-fit force(static) |
110N |
|
Axial play(measured under less than 4N axial force) |
0.05->0.15mm |
|
Maximum radial play |
0.025mm |
|
L:Maximum allowable screw depth into flange 5.0mm |
|

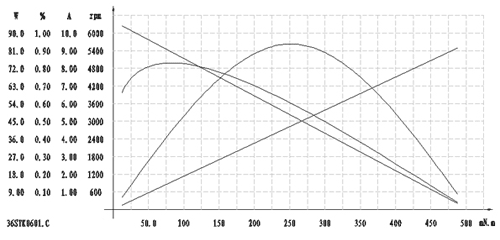

Motor data tested at ambient temperature 25 .Data varies when the temperature changes. |
|
Operation outside stated limits may affect motor service life.Please consult us before doing so. |
|
Motor service life depends on operating conditions.Under normal conditions, service life of 1000 to 3000 is achievable. |
|
Excessive bending of motor terminals may result in breakage when more than 3 times. |
)
